LATUS

Latus is a patented series of side hydraulic hinges indicated for all installations without holes in the floor. Latus Series embodies all Casma’s know-how, it is in effect a miniaturized floor spring. Latus provides the possibility of speed regulation with a single valve easily accessible and not visible externally when applied the cover.   The Series includes:

• Latus, a swinging hydraulic hinge for aluminum frame fixing, glass fixing and wall fixing. Ideal also for external doors with windproof damper. Tested 500.000 cycles with internal certification based on EN1154 Norm (TUV Certification on going). Latus is available for glass thickness from 8 to 14 mm (5/16”÷9/16”) and it can carry doors up to 100 kg (220 Lbs) with 1000 mm (39-3/8”) of width.
• Latus80, an offset hydraulic hinge with side fixing for aluminum frame and wall. Ideal also for external doors with windproof damper. Tested 500.000 cycles with internal certification based on EN1154 Norm (TUV Certification on going). Latus80 is available for glass thickness from 8 to 14 mm (5/16”÷9/16”) and it can carry doors up to 100 kg (220 Lbs) with 1000 mm (39-3/8”) of width. Latus80 is available with squared or rounded design.

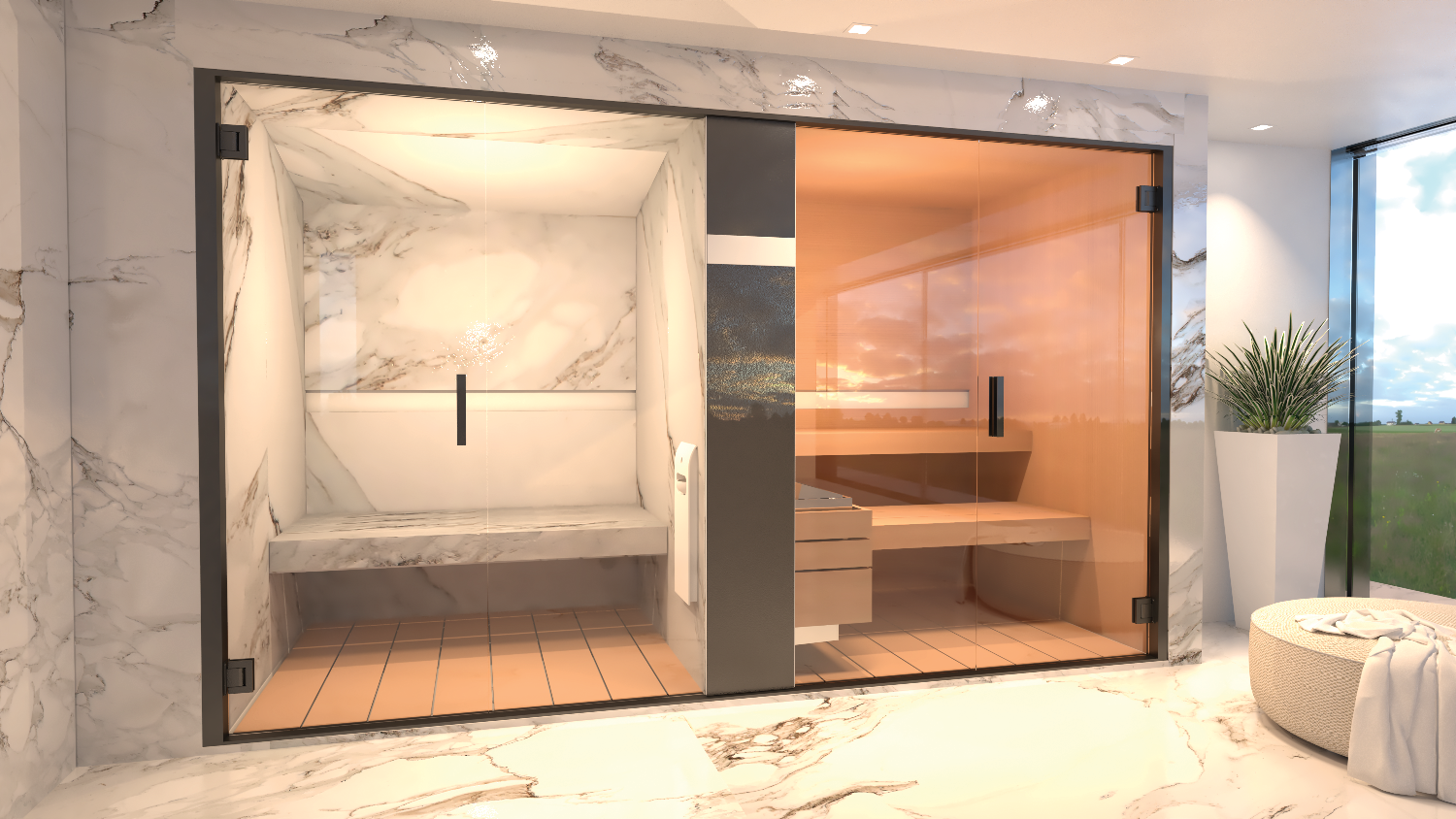

• Latus60, an offset hydraulic hinge with side fixing for aluminum frame and wall. Designed for showers, saunas and internal doors. Latus60 is available for glass thickness from 8 to 12 mm (5/16”÷15/32”) and it can carry doors up to 65 kg (145 Lbs). Tested 500.000 cycles with internal certification based on EN1154 Norm.
